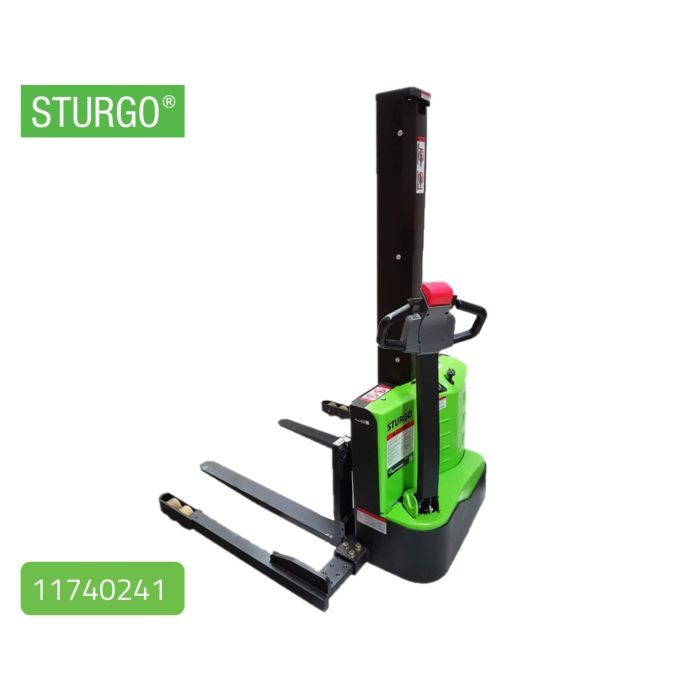

Compact Electric Straddle Stacker
Reduce manual handling by providing users with a safe and efficient way of positioning pallets at heights.
Model Number: 11740241-A
When a forklift won’t do, do it with the Compact Electric Straddle Stacker. Safe and easy to use, it provides excellent visibility, reducing the risk of accidents, as well as manual handling injuries.
Features:
- Durable. Low-noise, hydraulic system with high-quality cylinder.
- Practical. Side-positioned controls for excellent visibility.
- Ergonomic. Comfortable handle with dual-paddle controls.
- Stable. Adjustable fork width and stabilising feet.
- Low-hassle. Maintenance-free gel battery with in-built charger.
- Safe. Anti-roll braking device and emergency stop button.
- Manoeuvrable. Crawl speed mode allows safe manoeuvring.
- Quieter. Electric build means it’s quieter than combustion powered forklifts.
TECHNICAL BRIEF:
- Capacity 1200kg.
- Travel speed 4.2 to 5 km.
- Gel battery.
- Electromagnetic service brake.
| Characteristics | |||
|---|---|---|---|
| 1.2 | Model designation | - | 11740241 (previously 11740004) |
| 1.3 | Drive unit | Electric | |
| 1.4 | Operator type | Pedestrian | |
| 1.5 | Load capacity | Q (kg) | 1200 |
| 1.6 | Load center | c (mm) | 600 |
| 1.8 | Load distance | x (mm) | 850 |
| 1.9 | Wheelbase | y (mm) | 1210 |
| Weights | |||
| 2.1 | Service weight (incl.battery) | kg | 625 |
| 2.2 | Axle loading, laden operator / load side | kg | 725 / 900 |
| 2.3 | Axle loading, unladen operator / load side | kg | 495 / 130 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | - | PU/PU |
| 3.2 | Tyre size, operator side | mm | 210 x 70 |
| 3.3 | Tyre size, load side | mm | 100 x 50 |
| 3.4 | Balance wheels (dimensions) | mm | 100 x 50 |
| 3.5 | Wheels, number operator / load side (x = drive wheels) | 1x + 1/4 | |
| 3.6 | Tread, operator side | b10 (mm) | 533 |
| 3.7 | Tread, load side | b11 (mm) | 1060 / 1160 / 1260 / 1360 |
| Dimensions | |||
| 4.2 | Height, mast lowered | h1 (mm) | 1940 |
| 4.3 | Free lift | h2 (mm) | 1500 |
| 4.4 | Lift height | h3 (mm) | 1520 |
| 4.5 | Height, mast extended | h4 (mm) | 2045 |
| 4.9 | Height of tiller arm in operating position, min / max | h14 (mm) | 860 / 1200 |
| 4.15 | Fork height, lowered | h13 (mm) | 60 |
| 4.19 | Overall length | l1 (mm) | 1570 |
| 4.20 | Length to face of forks | l2 (mm) | 500 |
| 4.21 | Overall width | b1 / b2(mm) | 1135 / 1235 / 1335 / 1435 |
| 4.22 | Fork dimensions | s/e/l (mm) | 35 / 100 / 1070 |
| 4.25 | Outside fork width, minimum / maximum | b5 (mm) | 200 / 700 |
| 4.32 | Ground clearance | m2 (mm) | 40 |
| 4.33 | Aisle width, 1000 x 1200 pallet crossways | Ast (mm) | 2175 |
| 4.34 | Aisle width, 800 x 1200 pallet length ways | Ast (mm) | 2100 |
| 4.35 | Outer turning radius | Wa (mm) | 1329 |
| Performance | |||
| 5.1 | Travel speed, laden / unladen | km/h | 3.5 / 4 |
| 5.2 | Lifting speed, laden / unladen | m/s | 0.12 / 0.22 |
| 5.3 | Lowering speed, laden / unladen | m/s | 0.12 / 0.11 |
| 5.8 | Maximum gradeability, laden / unladen S2 5 min. | % | 3 / 10 |
| 5.10 | Service brake | - | Electromagnetic |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 0.65 |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 |
| 6.4 | Battery voltage / rated capacity (5h) | V/Ah | 2x 12 / 80 |
| 6.5 | Battery weight (with box) | kg | 2 x 20 |
| - | Battery compartement dimensions l/w/h | mm | 260 / 172 / 215 |
| - | Battery type | - | Gel Battery |
| Others | |||
| 8.1 | Type of drive control | - | DC |
| - | Manufacturer | - | CURTIS |
| 8.4 | Sound level at operator’s ear | dB(A | 74 |
1. Special lifting height available.
2. The specification in the table are for standard models only. For further information please contact us.
3. Specification are subject to change without notice.
