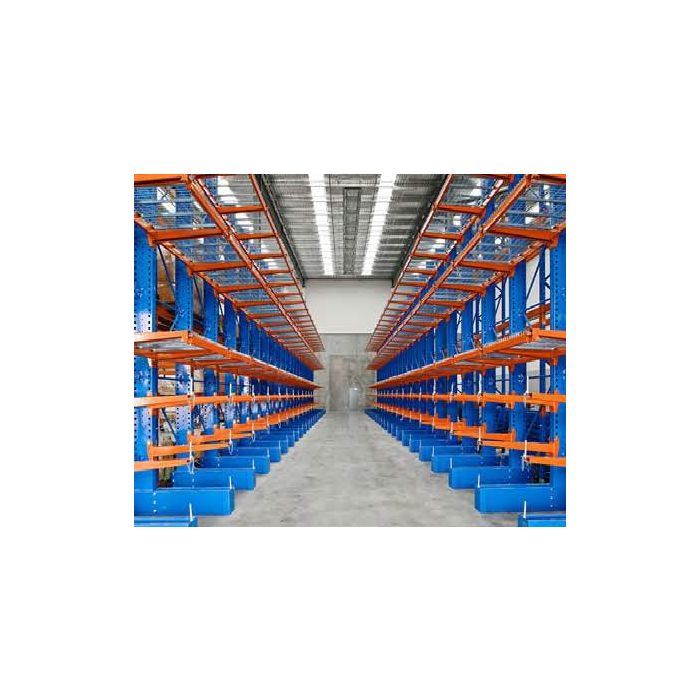

Cantilever Racking - Heavy or Light Duty

Cantilever racking is an effective and time saving solution for storing long and odd sized items including timber, steel, mouldings, profiles and flat sheets.

Model Number: CANTILEVER

Add to Quote

Backsafe Australia provides warehouse design and 3D layout services to assist in maximising your space. We can also complete installation for new warehouse fitouts and warehouse relocations. Please enquire for more information.
Heavy duty racking is "mine spec" and ideal for mining or heavy industrial industries!

Features:

  • Designed to your warehouse and individual requirements with a range of sizes available in both Heavy Duty (suits exceptional weight loads) and Light Duty (suits light to moderate weight loads)
  • Premium Blaze Blue & Safety Orange powder coat finish for exceptional visibility
  • Available with Single or Double sided configurations
  • Canitlever arms are connected to the upright columns with a pivot pin system to prevent forklift damage when loading or unloading the levels below whilst maintaining height adjustability
  • Optional Mesh Decking can be fitted to cantilever arms
  • Hot Dipped Galvanised finish is also available
  • Adheres with Australian Standards - AS4084: 1993 Steel Storage Racking
  • See some of our Cantilever Racking Installations!



HEAVY DUTY:

Arm Length: 1200mm
Arm Load Capacity: 1000kg UDL

Note: Cantilever Rack Load capacity is calculated according to the specific rack configuration.

Column Centres (mm) Height (mm)
900 4000 4800 5800
1200 4000 4800 5800
1500 4000 4800 5800
2000 4000 4800 5800



LIGHT DUTY:

Arm Length: 800mm
Arm Load Capacity: 250kg UDL

Note: Cantilever Rack Load Capacity is calculated according to the specific rack configuration.

Column Centres (mm) Height (mm)
900 2900
1200 2900
1500 2900
2000 2900
